Thomas Custom Woodworks

King Size Miter Saw Station Plans - Written AND Video

King Size Miter Saw Station Plans - Written AND Video

Regular price $19.00 USD
Regular price Sale price $19.00 USD
Sale Sold out
Shipping calculated at checkout.

***THIS IS A DOWNLOADABLE DIGITAL BUILD PLAN AND NOT A PHYSICAL ITEM***

Upon purchase you will receive 41 pages of detailed written plans and a link for the 33-minute instructional video plans.

Introducing the King Size Mobile Miter Saw Station Plans - the perfect solution for both beginners and advanced builders seeking a space-conscious and mobile miter saw station. These meticulously crafted plans provide detailed written and video instructions, ensuring a seamless construction process for all skill levels.

Key Features:
- Adaptable To Your Miter Saw: Although this miter saw station can work for almost any saw, I have created it to fit these popular, larger saws:
     - Bosch GCM12SD
     - Ridgid R4222
     - Dewalt 779/780
     - Dewalt 715
     - Festool Kapex KS 120
     - Festool Kapex KSC 60
     - Ryobi TSS121
If your saw is smaller than these saws the King Size Mobile Miter Saw Station plans will still work, but consider using my Better Mobile Miter Saw Station plans which is designed for a smaller saw.

- Foldable Wings: The foldable wings provide 42 inches of cutting surface on each side of the miter saw when they are up and can fold down when the saw is not in use.

- Storage Options & Dust Collection: This includes 2 drawers for your smaller tools and accessories and a lower storage space for a shop vac.

- Versatility for All Skill Levels: Whether you're a beginner honing your skills or an advanced builder looking for a practical addition to your workspace, these plans cater to all skill levels.

- Detailed Instructions: My plans come with comprehensive written and video instructions, guiding you through each step of the construction process.

What is included in these written plans:
- Materials list
- Tools list
- Approximate cost
- Cut list
- Step-by-step written instructions with pictures and dimensions
- Video plans (link is on page 2 of the written plans)

What is included in the 33-minute video plans:
- Step-by-step video instructions on how to complete every step of the build.

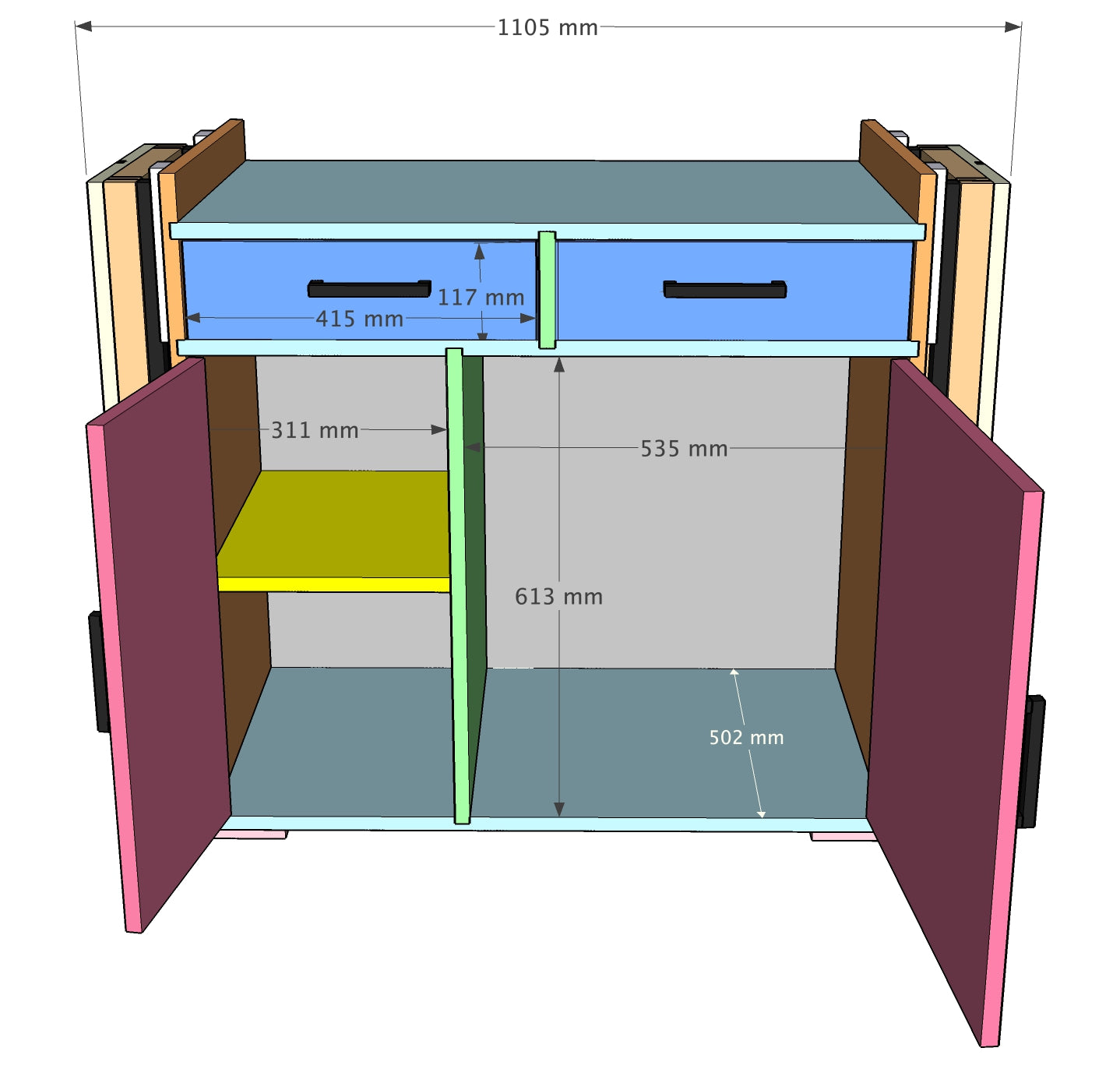

Dimensions (also in the photos):

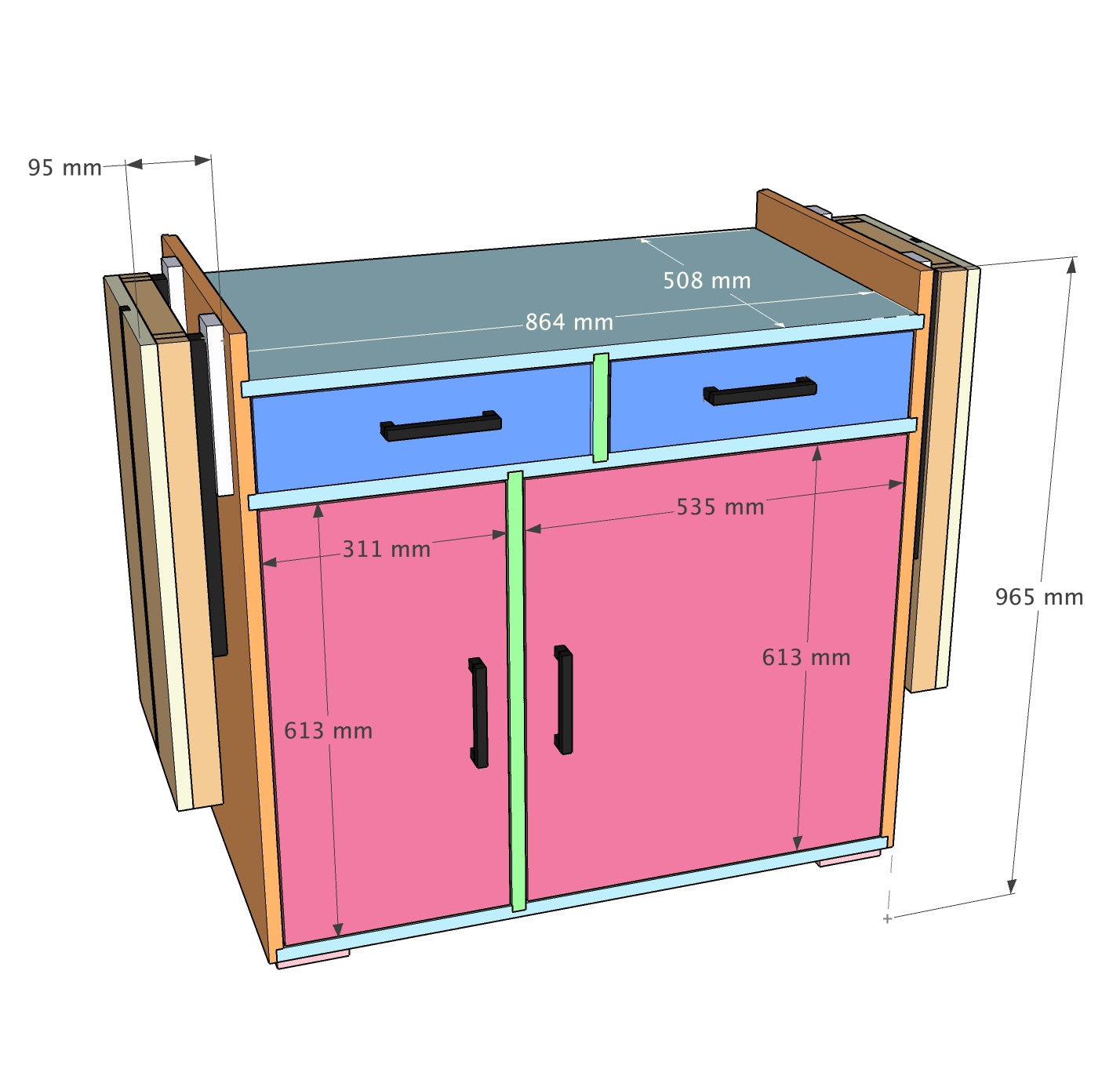

Wings Folded:
- Height: 38 inches
- Width: 43 1/2 inches
- Depth: 20 inches

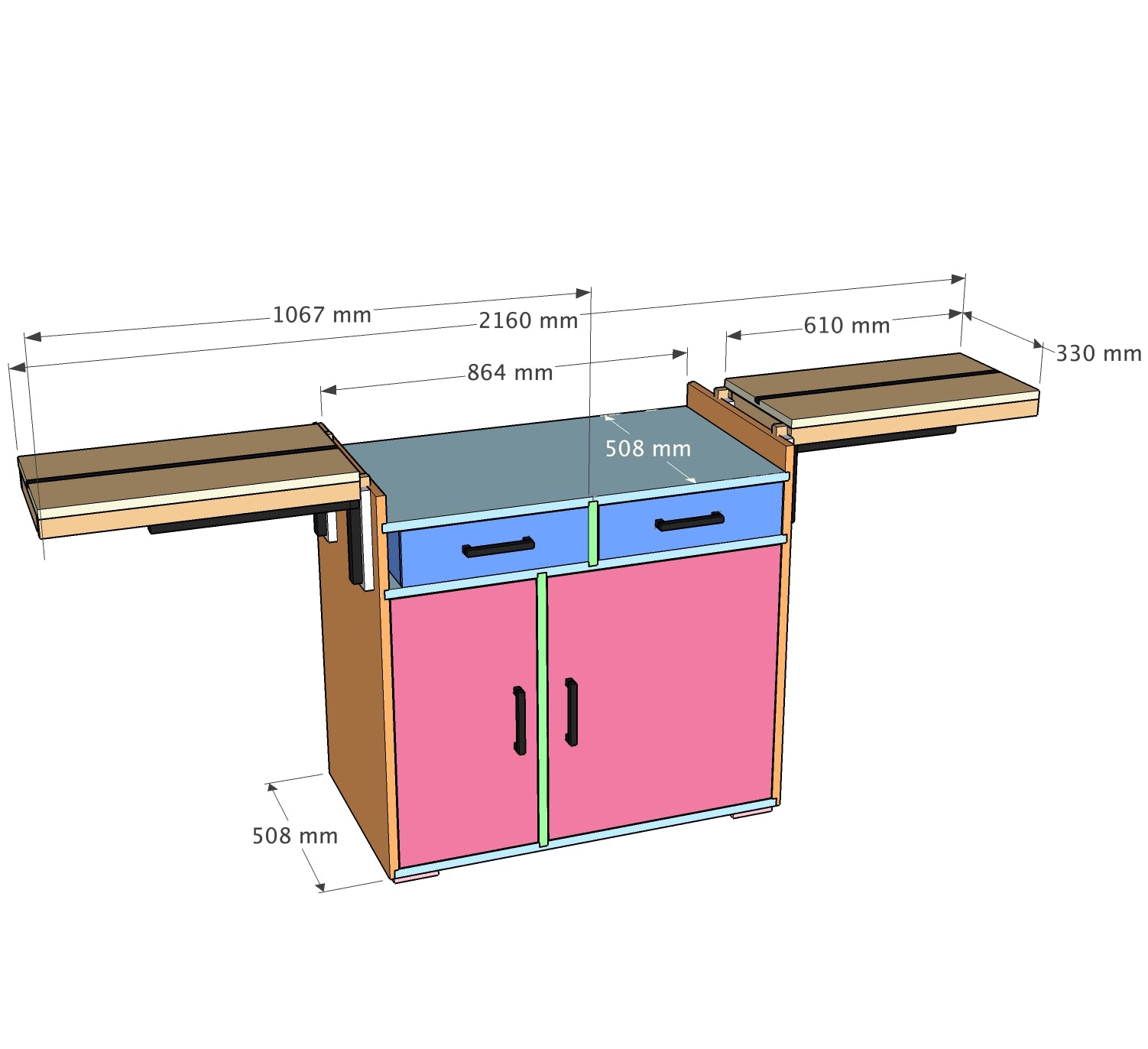

Wings Unfolded:
- Height: 38 inches
- Width: 85 inches
- Depth: 20 inches

Power Tools Needed:
- Circular Saw
- Table Saw
- Drill
- Trim Router
- Miter Saw (optional but convenient)

You will also need a dado stack in your table saw.

Approximate Total Cost to Build: $340

Measurements are in Imperial only (inches), NOT Metric (cm, mm).
