Mid-Size Crosscut Sled Plans - Imperial AND Metric
Mid-Size Crosscut Sled Plans - Imperial AND Metric
Couldn't load pickup availability
***THIS IS A DOWNLOADABLE DIGITAL BUILD PLAN AND NOT A PHYSICAL ITEM***
You will receive these plans in Imperial (inches) and Metric (mm) measurements.
Upon purchase you will receive 28 pages of detailed written plans and a link for the 11-minute instructional video plans.

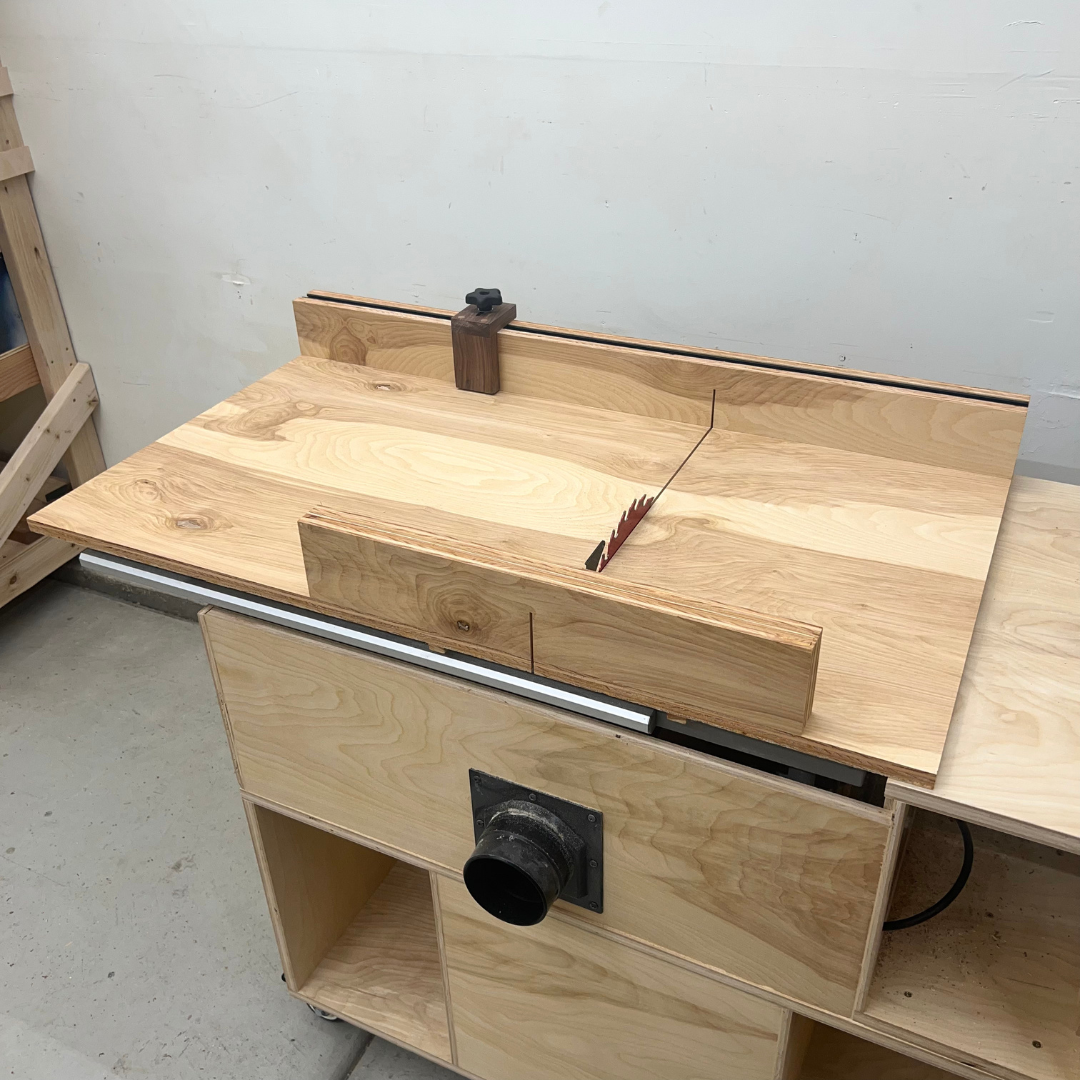

Introducing the Mid-Size Crosscut Sled Plans
Key Features:
- T-Track: This sled has integrated t-track so you can use a stop block for repeatable cuts.
- Stop Block: Included in these plans is instruction on how to make an inexpensive and sturdy stop block.
- Basic Tools Needed: No need for a bunch of expensive tools to make this jig.
- Perfect Size: This sled is big enough for all of your crosscutting needs but not so big that you will dread using it.
- Versatility for All Skill Levels: Whether you're a beginner honing your skills or an advanced builder looking for a practical addition to your workspace, these plans cater to all skill levels. The detailed instructions ensure a smooth construction process from start to finish.
- Detailed Instructions: My plans come with comprehensive written and video instructions, guiding you through each step of the construction process.
What is included in these written plans:
- Materials list
- Tools list
- Approximate cost
- Cut list
- Step-by-step written instructions with pictures and dimensions
- Video plans (link is on page 2 of the written plans)
What is included in the 11-minute video plans:
- Step-by-step video instructions on how to complete every step of the build.
What you won't get with these plans:
- Vague instructions that will leave you guessing
- Confusion diagrams or missing measurements
- Assumption that you're a pro with a fully loaded shop
- A fast-talking, edited YouTube video instead of real guidance

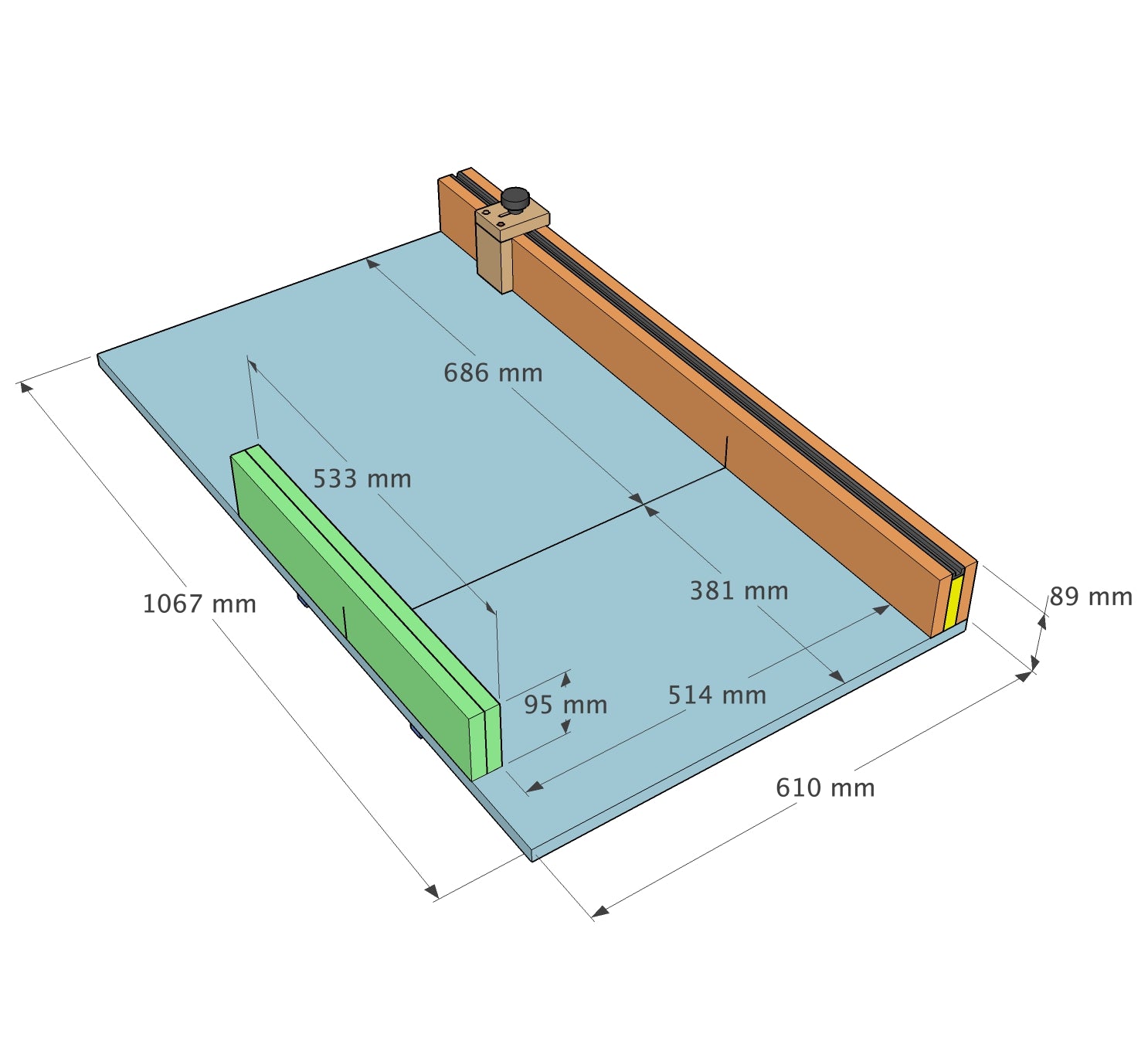

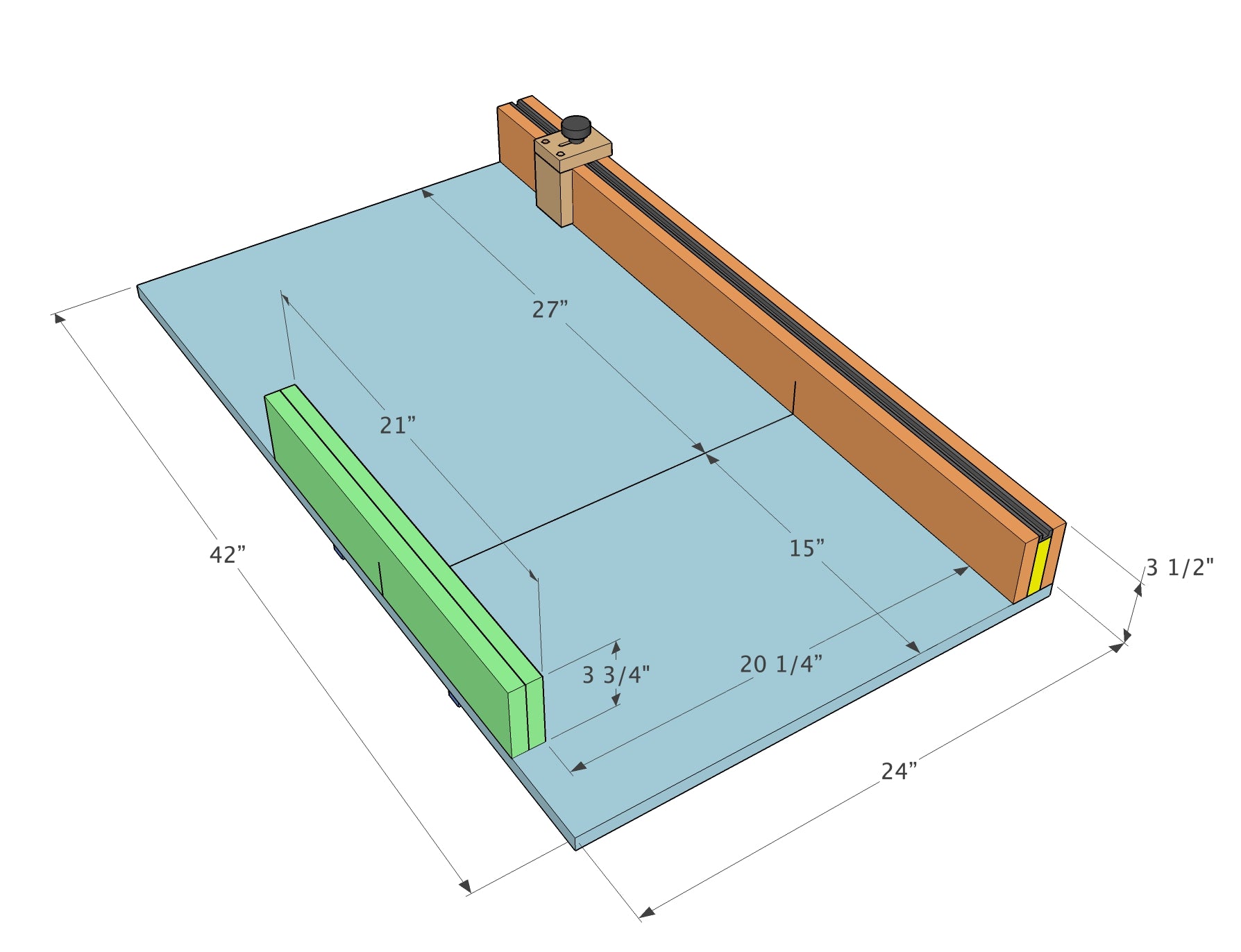

Dimensions (also in the photos):
- Width: 42 inches (1067 mm)
- Depth: 24 inches (610 mm)
- Height: 4 1/2 inches (113 mm)
Power Tools Needed:
- Table Saw
- Circular Saw
- Miter Saw
- Drill
- Jigsaw
Approximate Total Cost to Build: $90
Measurements are in Imperial (inches) AND Metric (mm).
Share
Have not built it yet. Plans look good though
I still haven't quite finished this build, as I made a mistake. I accidentally reversed the "front" and "back" fences and made the cuts. I'll reuse the fences, but had to make a new sled base and runners.
Front and back might be standard terms, but I made the mistake of thinking "Front" was relative to me, not the saw. From that perspective, "front" would be closest to me, and "back" would be furthest. Reality is that "front" goes into the blade first, and "back" goes in last.
I can't come up with a better solution. A note or warning might have helped, but then you're filling your nice plans with warnings everywhere to catch every possible mistake someone might make.
I only have the stop block to finish. I found the instructions to be clear otherwise, and look forward to using the sled on the Drill and Sanding Station. Gotta get this garage in order!
Simple easy to follow instructions plus the youtube video is very helpful for visual learning.
I must admit this is the best plan thus far I have seen for my new Dewalt I am a 77 year old late bloomer woodworker Recently had a total knee replacement and unable to get down the steep steps to my shop so when I am able I will make it Thank you
I havent built the crosscut sled yet, but the instructions and videp were clear and easy to understand.
