Mobile Table Saw Cart Plans - Imperial AND Metric
Mobile Table Saw Cart Plans - Imperial AND Metric
Couldn't load pickup availability
***THIS IS A DOWNLOADABLE DIGITAL BUILD PLAN AND NOT A PHYSICAL ITEM***
You will receive these plans in Imperial (inches) and Metric (mm) measurements.
Upon purchase you will receive 41 pages of detailed written plans and a link for the 32-minute instructional video plans.
Introducing the Mobile Table Saw Cart Plans
Key Features:
- Adaptable To Your Table Saw: I am building this cart for my Ridgid R4518 table saw but the plans can be easily adapted to your specific saw.

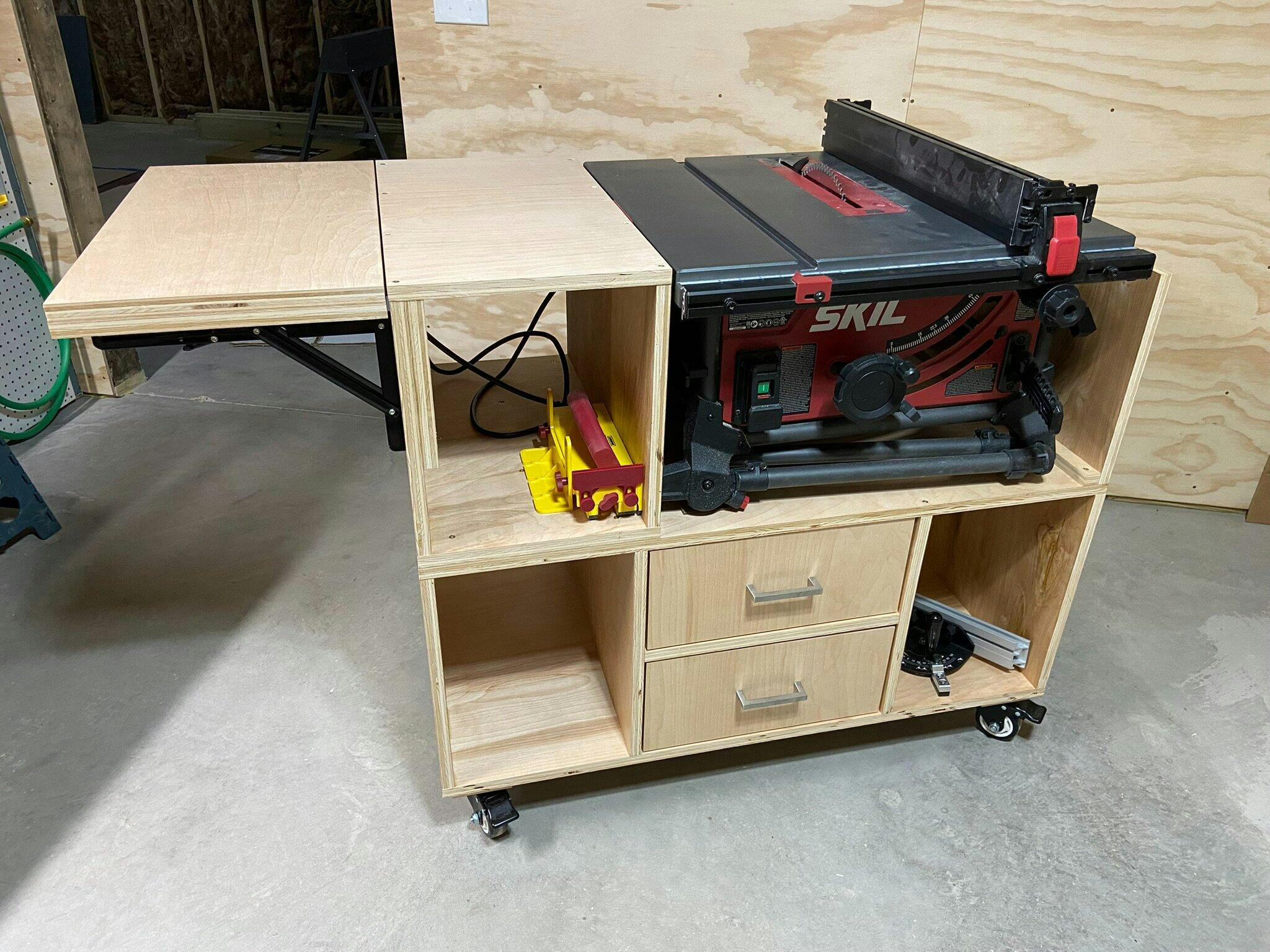

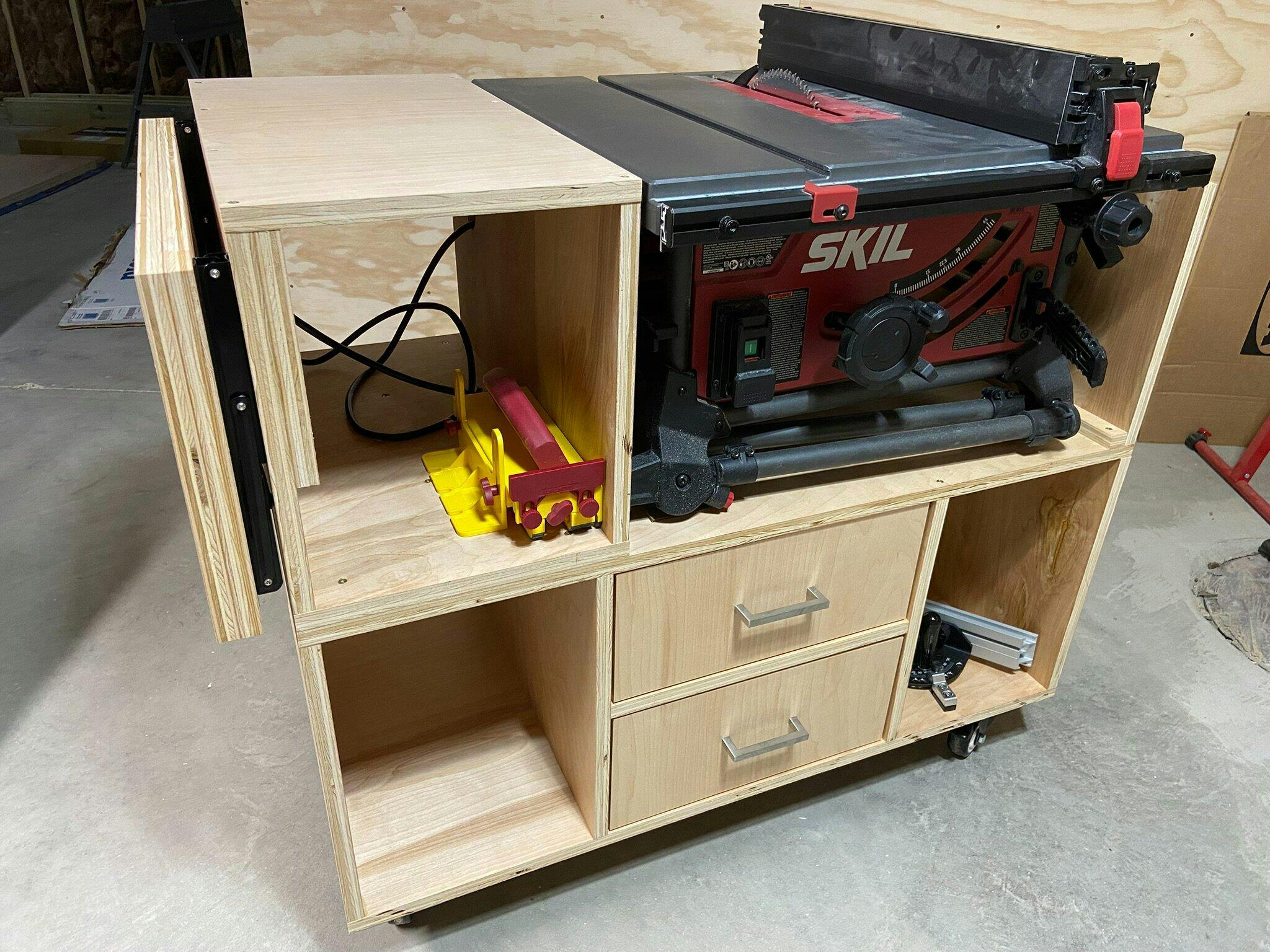

- Foldable Wing: The foldable wing provides 13 inches of additional cutting surface on the left side of the cart when it is up and can fold down when the saw is not in use. The wing along with the upper box provides a total of over 22 inches of extra cutting surface.
- Storage Options & Dust Collection: This includes 2 drawers and 3 open storage compartments for tools and accessories. The saw will also be semi-enclosed to help with dust collection.
- Versatility for All Skill Levels: Whether you're a beginner honing your skills or an advanced builder looking for a practical addition to your workspace, these plans cater to all skill levels. The detailed instructions ensure a smooth construction process from start to finish.
- Detailed Instructions: My plans come with comprehensive written and video instructions, guiding you through each step of the construction process.
What is included in these written plans:
- Materials list
- Tools list
- Approximate cost
- Cut list
- Step-by-step written instructions with pictures and dimensions
- Video plans (link is on page 2 of the written plans)
What is included in the 32-minute video plans:
- Step-by-step video instructions on how to complete every step of the build.
What you won't get with these plans:
- Vague instructions that will leave you guessing
- Confusion diagrams or missing measurements
- Assumption that you're a pro with a fully loaded shop
- A fast-talking, edited YouTube video instead of real guidance
Dimensions (also in the photos):

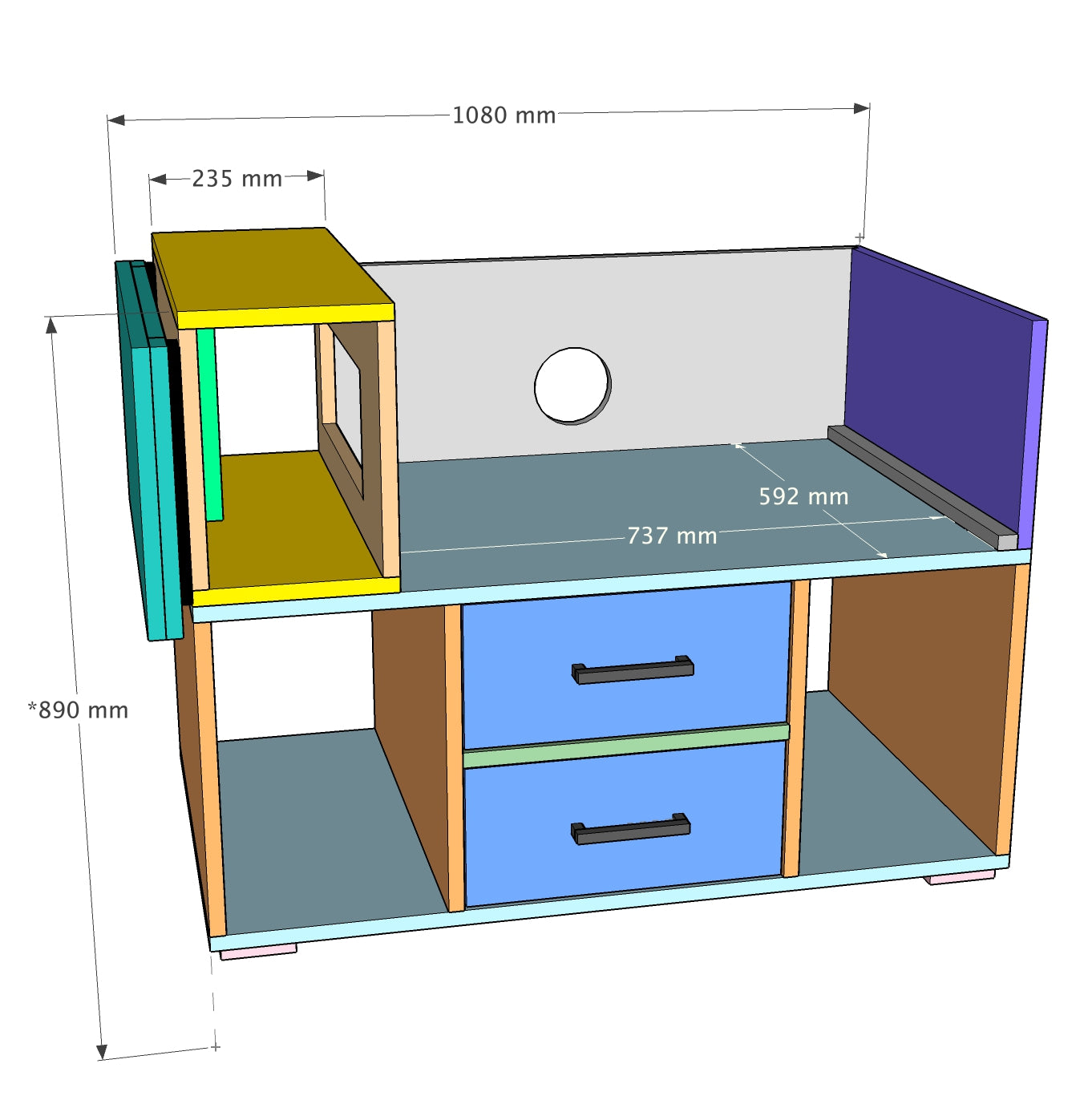

Wing Folded:
- Height: 35 inches (890 mm)
- Width: 42 1/2 inches (1080 mm)
- Depth: 24 inches (610 mm)

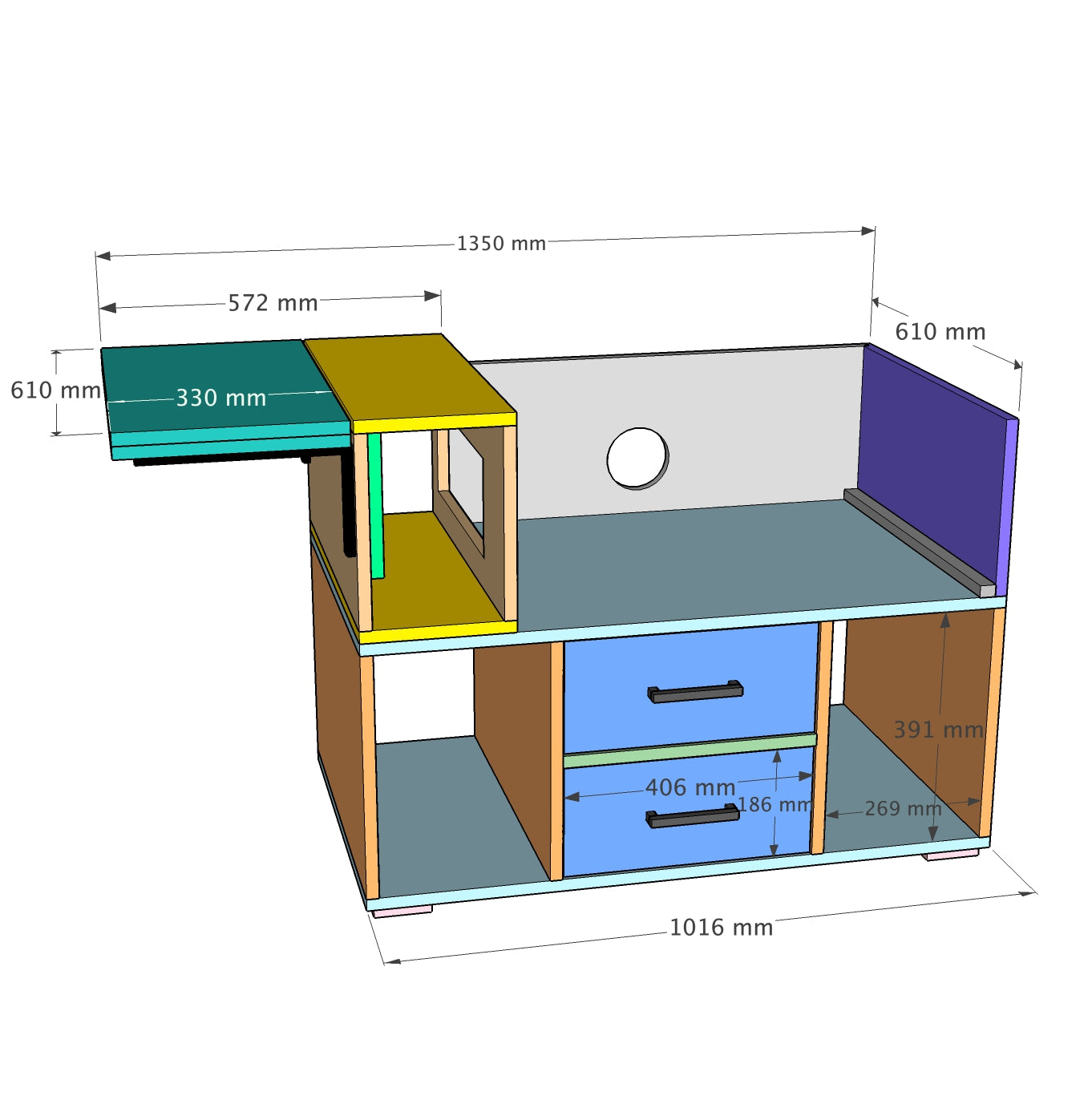

Wing Unfolded:
- Height: 35 inches (890 mm)
- Width: 53 1/8 inches (1350 mm)
- Depth: 24 inches (610 mm)
Power Tools Needed:
- Table Saw
- Circular Saw
- Drill
- Jigsaw
Approximate Total Cost to Build: $245
Measurements are in Imperial (inches) AND Metric (mm).
Share
I really like these plans - they have just the right amount of detail and the video adds the assistance you need if you're not quite sure how best to accomplish the task. I bought this plan before I bought my table saw, and then came to a screeching halt when I saw the release for the riving knife would be blocked by the additional cutting surface and folding wing. I was able to come up with an adaptation that worked really well so I'm sharing it here.
I've now made this (the mobile table saw cart), the midweight folding workbench, the king size miter saw station, a version of the better clamp rack, and I'm mid-way through the jointing jig. Thank you Thomas for all the fantastic plans!
Great plans, easy to follow. The video is a phenomenal resource. Your plan and video tutorials give me the confidence to continue to expand my workshop and the difficulty of my projects.
I was really excited to see both this and the miter saw stand. My problem is that, at 73, I’ve lost a lot of my muscle strength and can no longer haul around 4’x8’ sheets of 3/4” plywood. The solution was to have the lumber yard cut the sheets in half lengthwise and redo the cut sheet. This was possible since no part is wider than 24”, and I ended up with two sheets around 24-1/4” (approx) and two 23-7/8” wide. I’m spending the day happily cutting out the pieces to the stand and will start putting it together tomorrow.
Easy, well-laid-out plans. My first time using plans from this website. I needed to do a little additional math to fit a different table saw, but it was still easy. Great final product.
The plans for this table saw cart are precise and easy to follow. I believe between the plans and video will enable me to complete this project without any issues!
