Compact Crosscut Sled Plans - Imperial AND Metric

***THIS IS A DOWNLOADABLE DIGITAL BUILD PLAN AND NOT A PHYSICAL ITEM***

You will receive these plans in Imperial (inches) and Metric (mm) measurements.

Upon purchase you will receive 21 pages of detailed written plans and a link for the 15-minute instructional video plans.

Introducing the Compact Crosscut Sled Plans

Key Features:

• Bevel-Cutting Capability: This crosscut sled can cut bevels (45-degree angles) which is something my Mid-Size Crosscut Sled cannot do.

• Compact Size & Lightweight: This is the perfect size for 95% of the cross cuts you will need to make and light enough to carry anywhere.

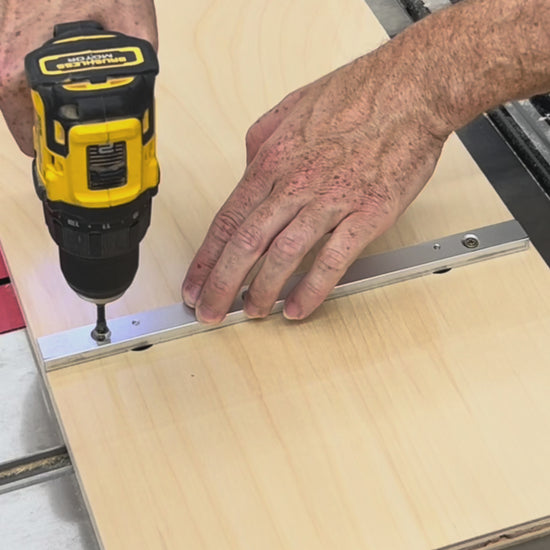

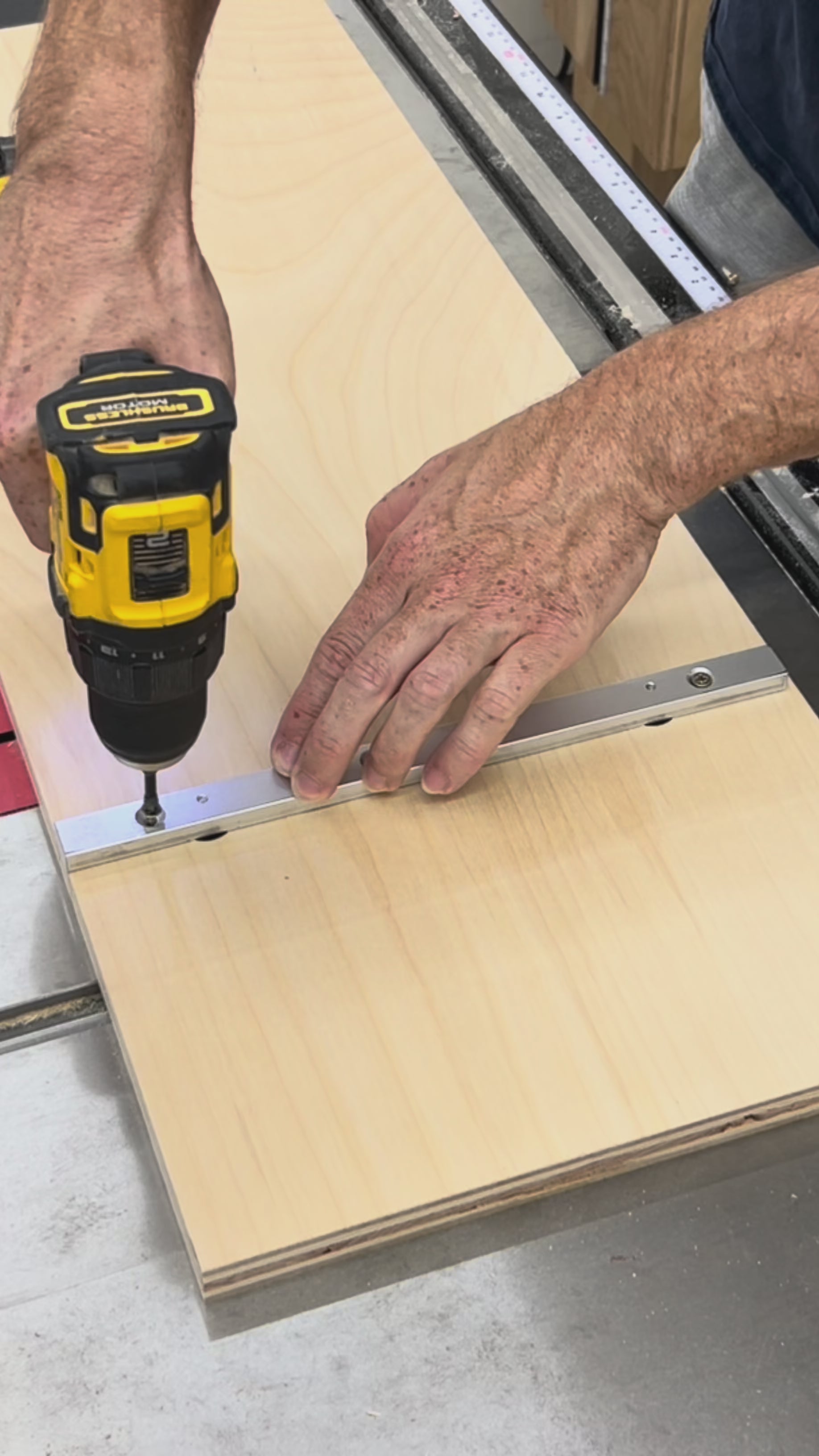

• T-Track: This sled has integrated t-track so you can use a stop block for repeatable cuts.

• Stop Block: Included in these plans is instruction on how to make an inexpensive and sturdy stop block.

• Budget Friendly: In terms of wood, this jig only requires 1 sheet of 2’ X 4’ (¾” thick) plywood.

• Basic Tools Needed: No need for a bunch of expensive tools.

• Versatility for All Skill Levels: Whether you're a beginner honing your skills or an advanced builder looking for a practical addition to your workspace, these plans cater to all skill levels. The detailed instructions ensure a smooth construction process from start to finish.

• Detailed Instructions: My plans come with comprehensive written and video instructions, guiding you through each step of the build process.

What is included in these written plans:
- Materials list
- Tools list
- Approximate cost
- Cut list
- Step-by-step written instructions with pictures and dimensions
- Video plans (link is on page 2 of the written plans)

What is included in the 15-minute video plans:
- Step-by-step video instructions on how to complete every step of the build.

What you won't get with these plans:
- Vague instructions that will leave you guessing
- Confusion diagrams or missing measurements
- Assumption that you're a pro with a fully loaded shop
- A fast-talking, edited YouTube video instead of real guidance

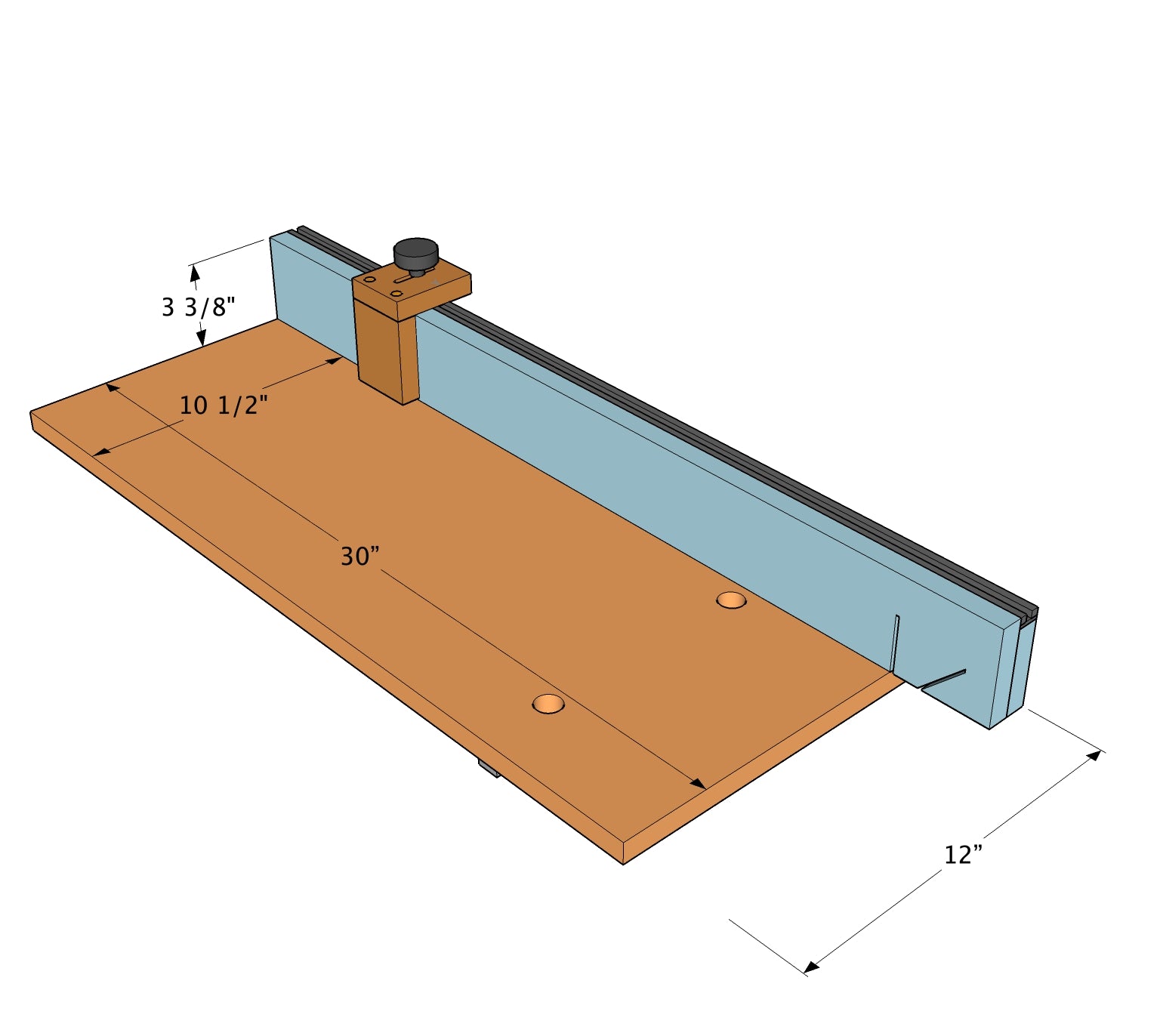

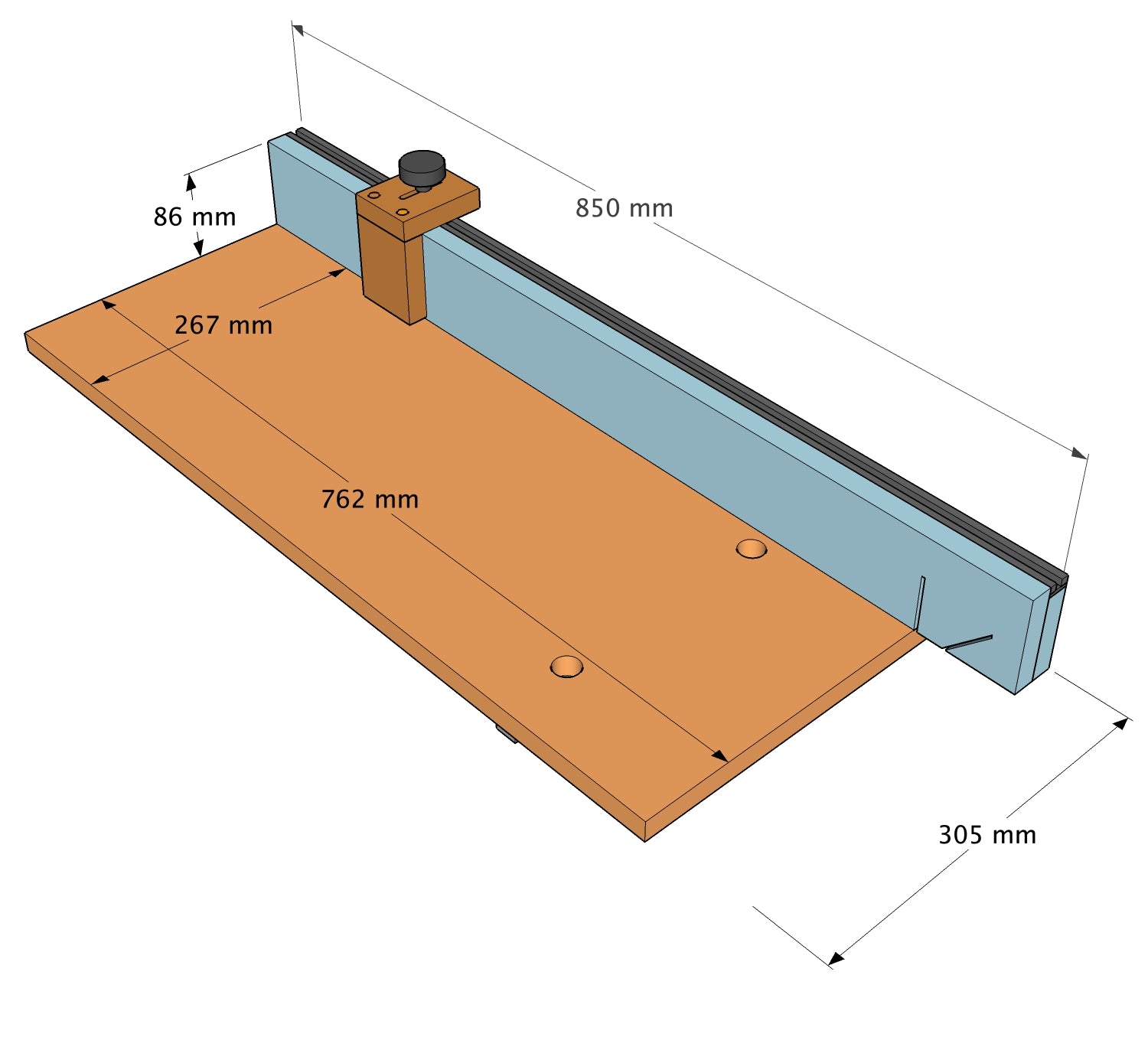

Dimensions (also in the photos):

• Length: 33 1/2" (850 mm)
• Depth: 12” (305 mm)
• Height: 4 1/8” (104 mm)

Power Tools Needed:

• Table Saw
• Power Drill
• Miter Saw

Approximate Total Cost to Build: $90

Measurements are in Imperial (inches) AND Metric (mm).
