Compact Miter Saw Station Plans - Imperial AND Metric
Compact Miter Saw Station Plans - Imperial AND Metric
Couldn't load pickup availability
***THIS IS A DOWNLOADABLE DIGITAL BUILD PLAN AND NOT A TANGIBLE ITEM***
You will receive these plans in Imperial (inches) and Metric (mm) measurements.
Upon purchase you will receive 32 pages of detailed written plans and a link for the 19-minute instructional video plans.
Key Features:
- Space-Saving Design
Retractable wings fold out for extra support when needed and fold back in to save space when not in use.
- Mobility at Its Best
Lockable casters allow you to easily move the station around your workshop, then secure it in place for stability.
- Smart Storage
Includes dedicated space for tools and accessories, keeping everything organized and within easy reach.
- Open Compartment for Easy Cleanup
An open compartment provides the perfect space for a garbage bin, making it easy to throw away scraps and keep your workspace tidy.
- Simple, Quick Build
Designed to be easy to build without compromising on functionality or appearance. This build is perfect for a beginner.
What is included in these written plans:
- Materials list
- Tools list
- Approximate cost
- Cut list
- Dimensions of every piece
- Step-by-step written instructions with pictures and dimensions
- Video plans (link is in the beginning of the written plans)
What is included in the 19-minute video plans:
- Step-by-step detailed instructions on how to complete every step of the build.
What you won't get with these plans:
- Vague instructions that will leave you guessing
- Confusion diagrams or missing measurements
- Assumption that you're a pro with a fully loaded shop
- A fast-talking, edited YouTube video instead of real guidance
Dimensions (also in the photos):

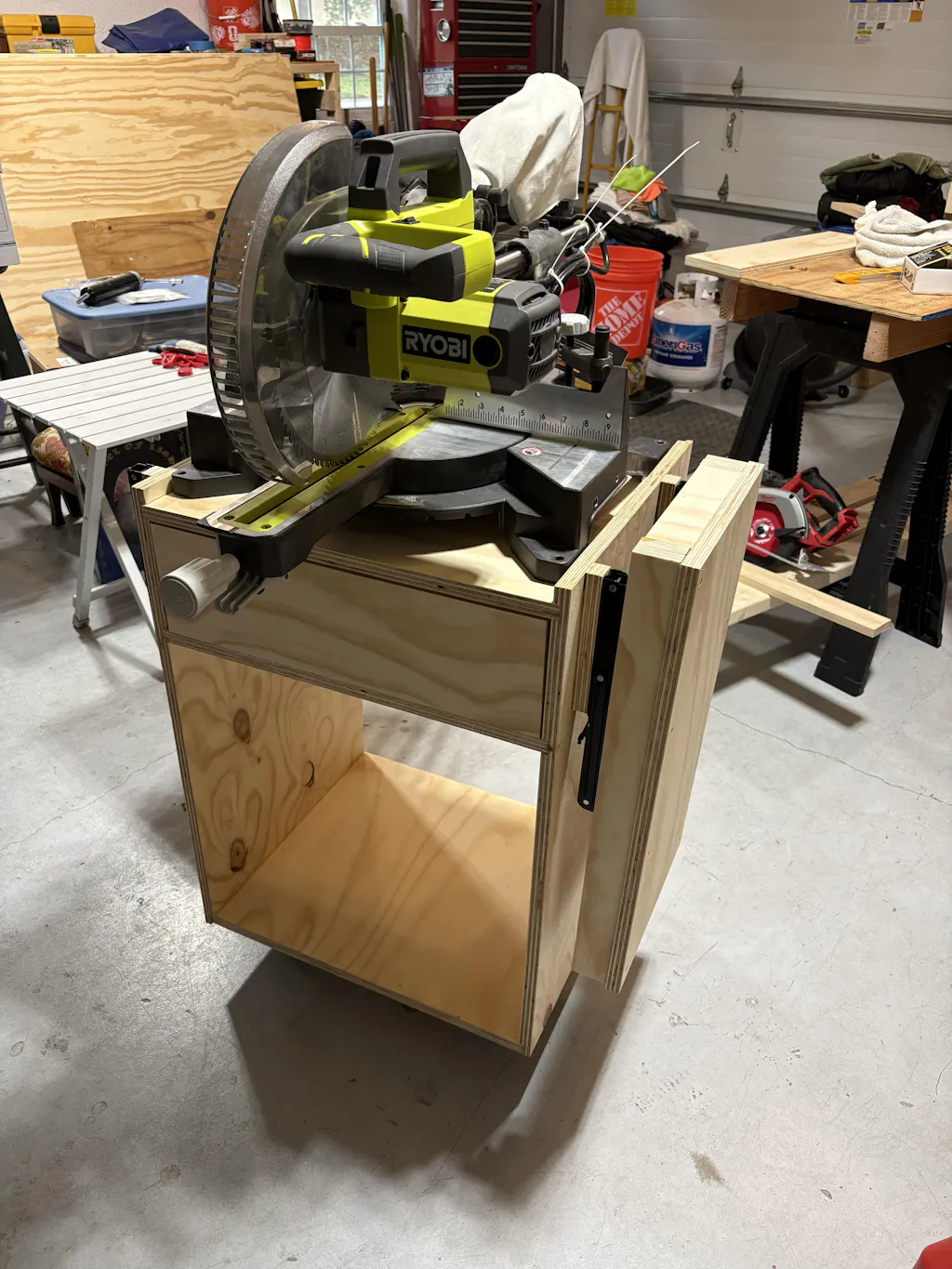

Wings Folded:
- Height: 32.5" (830 mm)
- Width: 30" (762 mm)
- Depth: 18" (460 mm)

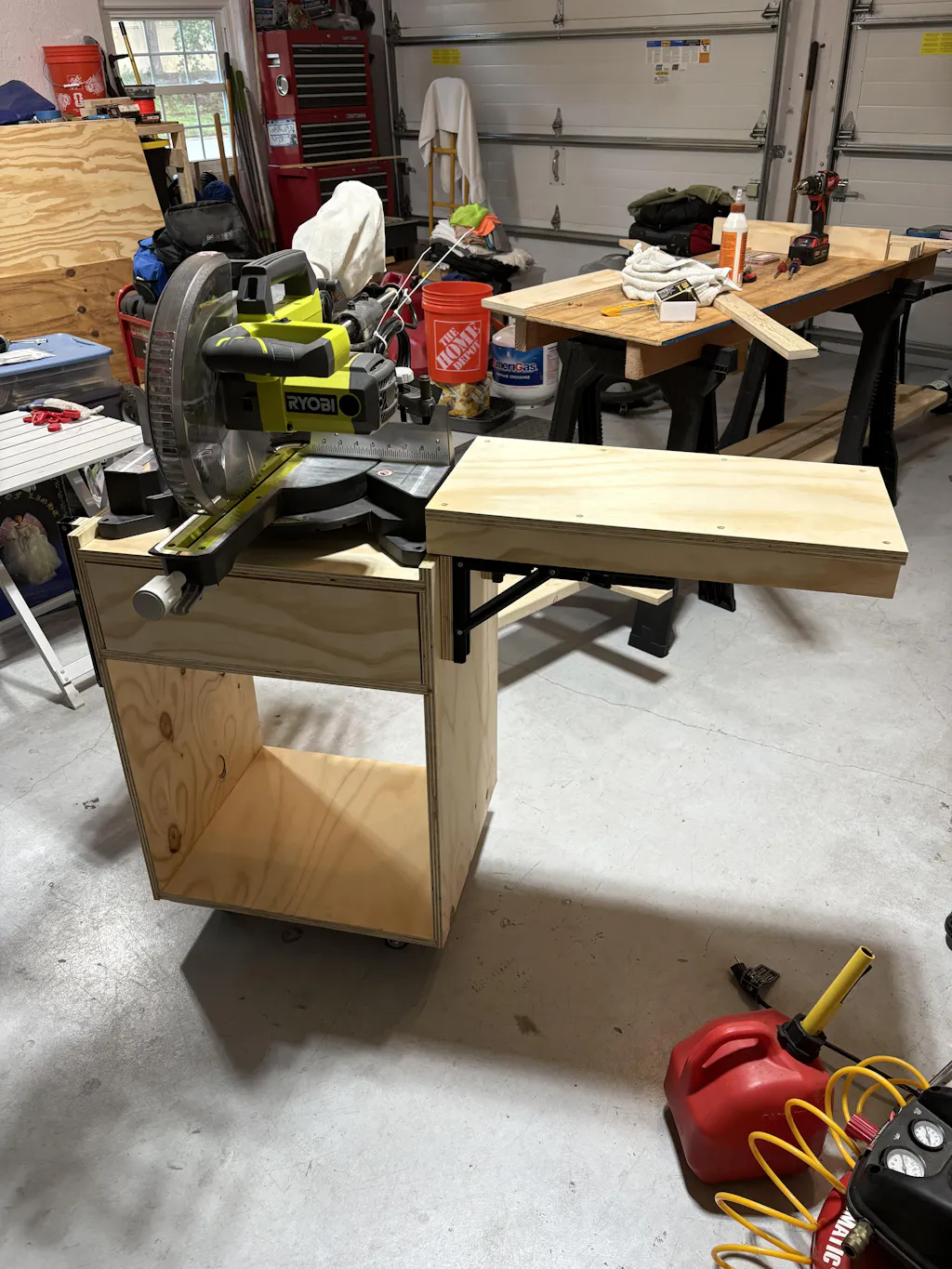

Wings Unfolded (up):
- Height: 32.5" (830 mm)
- Width: 71" (1805 mm)
- Depth: 18" (460 mm)
Power Tools Needed:
- Miter Saw
- Table Saw
- Drill
- Palm Router
Approximate Total Cost to Build: $195
Measurements are in Imperial (inches) AND Metric (mm)
Share
Nice plans, easy to follow, excellent video to go with it
Plans from Thomas Custom Woodworks are easy to follow. The details for cuts and assembly are very clear. Would recommend this business for buying plans
Wish there was a way to view the plans in one window and the video in another.
Had to purchasequite an array of tools for this project. While I have a tablesaw, I have never made a dado cut. Still researching how to do this safely
Great space saver
These look like great plans--very clear & detailed--although I never made the miter station. Instead, I am working from the King Size Miter Station plans, which Thomas sent me for free when I realized that the Compact Station plans wouldn't work for my saw.
